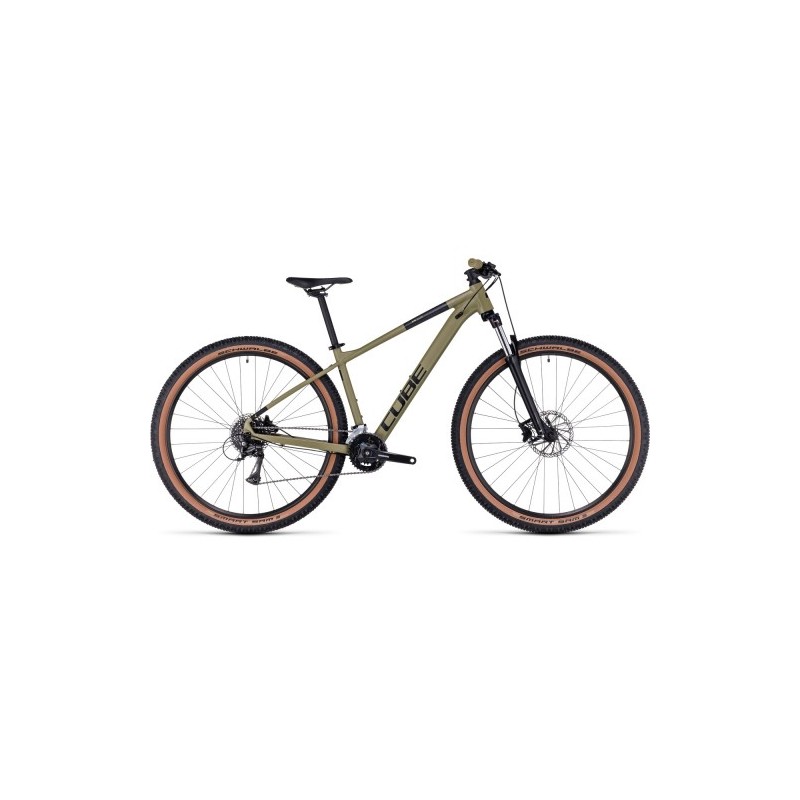

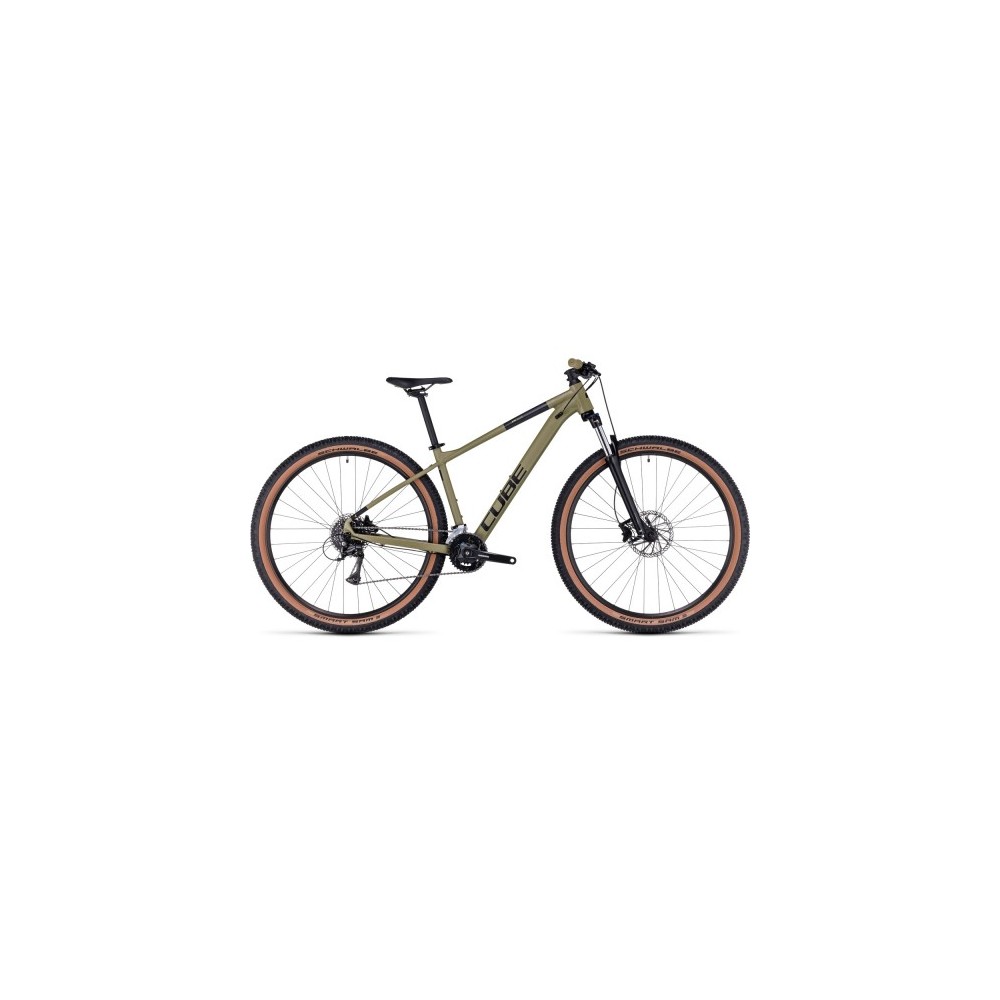

Cube Aim Race Olive 'n' Black - 2023

Product details

• Structural Weight 140 kg
• Bike Weight and Rider Weight 115 kg
• Sizes SizeSplit
• frame Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
• size Size Split: 27.5: XS (14"), S (16") // 29: M (18"), L (20"), XL (22"), XXL (24")
• Suspension fork SR Suntour XCT Disc, 100mm, Lockout
• brake system Clarks Clout 1, Hydr. Disc Brake PM/FM (180/160)
• rear derailleur Shimano RD-M3020, 8-Speed
• front derailleur Shimano FD-M315, Top Swing, 31.8mm Clamp
• shifters Shimano SL-M315, Rapidfire-Plus
• bottom bracket Thun Paso-ML, 73mm BSA
• crankset Shimano FC-M315, 36x22T, 170mm
• cassette Shimano CS-HG31, 11-34T
• chain KMC Z8.3
• front hub Shimano HB-TX505, QR, Centerlock
• rear hub Shimano FH-TX505, QR, Centerlock
• rims CUBE ZX20, 32H, Disc
• tyres Schwalbe Smart Sam, Active, 2.25
• handlebar CUBE Rise Trail Bar, 680mm
• Stem CUBE Peformance Stem Race, 31.8mm
• grips ACID React
• seat post CUBE Performance Post, 27.2mm
• seat clamp CUBE Varioclose, 31.8mm
• saddle Natural Fit Venec Lite
• headset CUBE FPH868, Semi-Integrated
• pedals ACID PP MTB
• weight 14,3 kg
• colour olive´n´black
